BETAFPV HX100 SE FPV Quad

Quad

Review BETAFPV HX100 SE FPV Quad!

BETAFPV HX100 SE FPV Quad has arrived, so I would like to review it.

I was not interested in "1S Toothpick" and did not plan to review "HX100 SE", but I decided to review it because the reputation of the purchaser was good.

The HX100 SE is very lightweight, so if you can fly outdoors, i think it's easier to handle such a quad.

Then, I will open the actual machine from the confirmation of the specification.

Review BETAFPV HX100 SE FPV Quad

BETAFPV HX100 SE FPV Quad
BETAFPV

HX100 SE FPV Quad Specs

  1. Item: HX100 SE FPV Quad
  2. Weight: 28.09g (without battery)
  3. FC&ESC: F4 1S Brushless FC V2.1
  4. Motors: 1102 13500KV Motors
  5. Props: Gemfan 65mm 2-blade shaft props (1.5mm hole)
  6. Camera & VTX : M01 AIO Camera 5.8G VTX
  7. Frame: HX100 SE Carbon Fiber Frame
  8. Canopy: Canopy for HX100 SE
  9. Receiver Option: Frsky XM / DSMX / Futaba S-FHSS
  10. Battery: BT2.0 300mAh 1S Battery
  11. Flight time: 4 mins in a smooth outdoor flight
  12. Flight time: 2:30 mins in full throttle outdoor flight

The HX100 SE uses 1102 13500KV Motors, but the 1S300mah battery has a phenomenal flight time of 4 minutes.

I think that it is possible to use it as a quad for practice because it can fly for a long time.

It is a specification that seems enough to learn the characteristics of how to use the transmitter and quad while flying in free flight.

If there were such a quad when I started the drone, I might not have had to start with a whoop that was difficult to handle.

BETAFPV HX100 SE FPV Quad

The above table compares with the 3S battery type quad "HX100", but it can be understood that "HX100 SE" is very lightweight.I also had no idea of using the 1102 motor with a 1S battery, and I was surprised to see that I chose this motor.

Recently, while there are few new quads, BETAFPV such as the release of "Meteor65" can have a good impression with the impression that it is working pretty hard.(That's why I decided to review the HX100 SE.)

In addition, the HX100 SE features the F4 1S Brushless Flight Controller V2.1, which is lightweight.In addition, Camera has the same configuration as the Meteor65, such as adopting the M01 AIO Camera 5.8G VTX.

BETAFPV HX100 SE FPV Quad "Unboxing"

BETAFPV HX100 SE FPV Quad

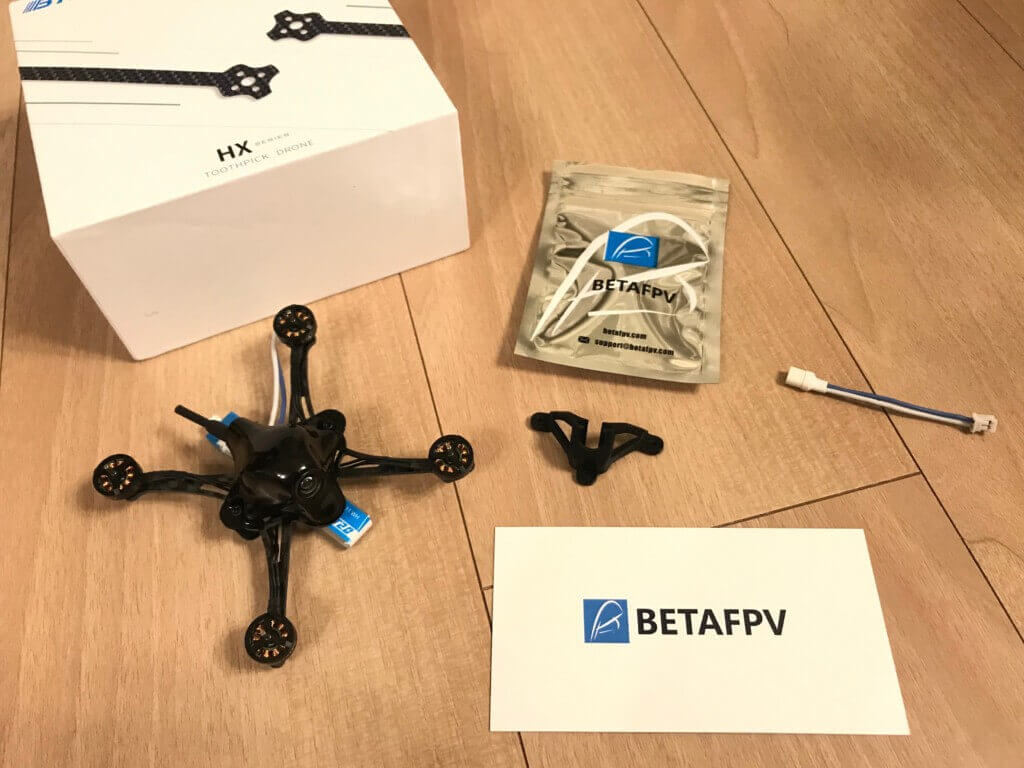

I took out the contents of the box.

  1. HX100 SE FPV Quad (Camera Mount Angle 35 Degrees)
  2. 1 battery
  3. One spare battery cable
  4. 1 25-degree camera mount
  5. BETAFPV Card

The product was a set of the above six points.BETAFPV does not come with a battery when it comes to the 75mm class, but I noticed that the 1S type comes with a battery.

BETAFPV HX100 SE FPV Quad Aircraft Check

Front view

BETAFPV HX100 SE FPV Quad

As an image of the "HX100 SE", the frame of the Meteor65 is like the frame of the HX100.(It is only an image and is actually different.)

Side view

BETAFPV HX100 SE FPV Quad

BETAFPV HX100 SE FPV Quad

The receiver antenna is installed in the canopy, so the quad looks very simple.

That would mean that it is excellent in maintainability.

Other

BETAFPV HX100 SE FPV Quad

BETAFPV HX100 SE FPV Quad

I think that the point of interest is the following two items.

  1. Bt2.0 battery connector
  2. 1102 13500kv motor

BETAFPV HX100 SE FPV Quad

The battery strap has been changed.It is understood that it contributes to the weight reduction of the quad by the magic tape type.

From the manufacturer's point of view, I was impressed with the manufacturer's efforts because such changes would lead to an increase in manufacturing costs.

BETAFPV HX100 SE FPV Quad

The weight of the quad is 28.4g with the propeller set.

Check Your BetaFlight Settings

BETAFPV HX100 SE FPV Quad

The HX100 SE seems to be able to demonstrate sufficient performance even in the shipping state.

Test flight

I tried a test flight, but can fly very fast as a 1S toothpick.In addition, flipping or looping was also very stable.

Feel as a freestyle machine is excellent and I think it's the best training machine.

Summary

It is a quad that is also excellent in cost performance, so if you are interested, please visit the SHOP of BETAPFV from the link below.

Thank you for reading.
